Process layout

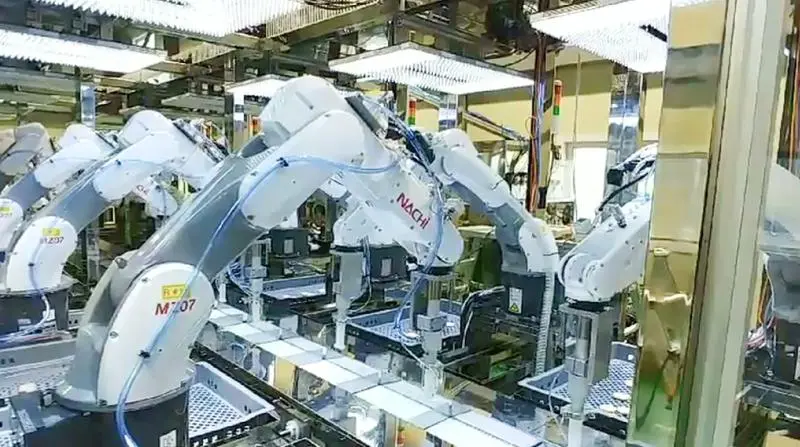

This automation solution utilizes twelve NACHI MZ07L robots and advanced vision tracking technology to stack fish cake products into plastic boxes. Even with irregular-shaped products like fish cakes, the system accurately recognizes the position of items moving on the conveyor and performs high-speed picking and placing into individual containers.
Components
| Robot |
|
|---|
Workflow
| STEP 1. | Infeed: Fish cake products are fed and transported via conveyor |
|---|---|
| STEP 2. | Vision Recognition: The system identifies the position and speed of each product in real-time |
| STEP 3. | Picking: The MZ07L robots pick up the products while the conveyor is in motion |
| STEP 4. | Stacking: The products are precisely loaded and stacked into plastic boxes |
Features
Maximize Space Efficiency with Compact Robotics
Ultra-Compact Footprint: The small-scale industrial robots allow for continuous installation and operation even in highly confined workspaces.
Enhanced Production Efficiency & Quality Control
Non-Stop Picking: Utilizes Vision Tracking to pick products in real-time while the conveyor is in motion, eliminating the need to stop the line.
Continuous Operation: Enables a seamless, idle-free workflow for maximum throughput.
Smart Sorting: Integrated sensing allows for the automatic detection and separation of products containing foreign materials, ensuring superior quality.
Results
| Key Benefits | Significant increase in productivity through continuous, automated manufacturing.
|
|---|---|
| Client Feedback | We expected automating irregular-shaped products to be a major challenge, but NKR's solution successfully resolved these complexities, allowing us to streamline our production.
|
