Process layout

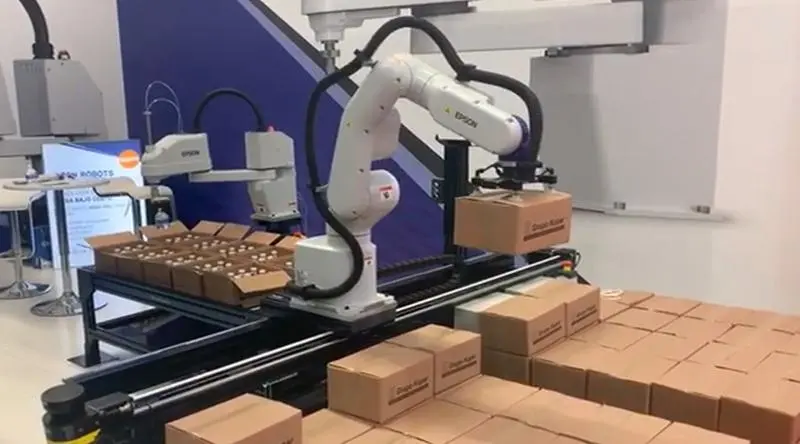

This solution automates the process of packing products into boxes and subsequently palletizing them by integrating Epson’s VT6L 6-axis robot, Epson’s T6 SCARA robot, and Vention’s Range Extender with MachineMotion controller.
The Epson T6 SCARA robot efficiently handles the high-speed task of transferring products into boxes. Meanwhile, the Epson VT6L 6-axis robot, mounted on Vention’s Range Extender, performs palletizing across a significantly expanded workspace. This combination allows for a seamless transition from primary packaging to end-of-line palletizing within a single automated cell.
Components
| Robot |
|
|---|
Workflow
| STEP 1. | Infeed: Products are fed into the system for the initial packing stage. |
|---|---|
| STEP 2. | Box Picking: The robot secures and prepares the boxes for loading. |
| STEP 3. | Cross-Unloading (Palletizing): The 6-axis robot stacks the filled boxes onto the pallet using a cross-pattern (interlocking) method for maximum stability. |
Features
Productivity Boost via Efficient Handling
End-to-End Automation: Seamlessly automates the entire process from incasing finished products into paper boxes to final palletizing.
Streamlined Workflow: Eliminates manual intervention between primary packaging and secondary stacking, ensuring a continuous production flow.
Expanded Workspace with Range Extender
Maximize Reach: By integrating Vention’s Range Extender, the robot overcomes its physical reach limitations, allowing it to cover a significantly larger palletizing area and stack higher.
Results
| Key Benefits | Expanded operational reach through the 7th-axis extender.
Increased production efficiency by automating the full box-stacking cycle.
|
|---|---|
| Client Feedback | Through Vention’s automation library, we were able to find a solution that was perfectly customized for our client and ready for immediate deployment.
|
