Process layout

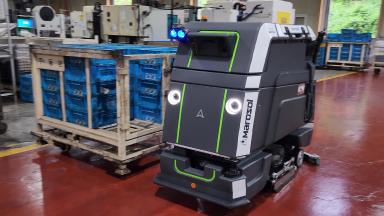

Seongju Comtech's Avidbots Neo 2 is the optimal solution for performing automatic Cleaning Robot tasks in large indoor spaces such as department stores, large shopping malls, large buildings, and factories.
Continuous Cleaning Robot operations can be performed through autonomous driving, whether during the day when there is high foot traffic or at night when there is no traffic. Equipped with 360-degree sensors, it can operate stably even in environments with high foot traffic.
Project Background and Purpose
Automation of day and night Cleaning Robot operations in multi-use facilities
Components
| Robot | Avidbots Neo 2 Wet Cleaning Robot Robot (based on 26-inch Disc option); an autonomous wet Cleaning Robot robot capable of long operation via a large-capacity tank and easy battery replacement; - Dimensions (mm): 1516 (L) X 760 (W) X 1374 (H); - Cleaning Robot Width: 660 mm; - Cleaning Robot Efficiency: Max. 3120 m2/hr; - Operation Time: Over 6 hours; - Max Vacuum Pressure: 15 kPa; - Water Tank: 109 liters; - Wastewater Tank: 135 liters; - Noise: Max. 72 dBA; - Weight: Max. 581 kg; |
|---|
Workflow
| STEP 1. | Map generation |
|---|---|
| STEP 2. | Perform cleaning while moving along the optimal path |
| STEP 3. | Stop and avoid obstacles when detected |
| STEP 4. | Cleaning is completed and the robot is charged |
Features
Always Providing Consistent and Superior Cleaning Quality
Up to 3,120 sq m per hour cleaning is possible
Dual pads allow for the optimized cleaning range
An easily replaceable AGM battery providing up to 6 hours of power (up to 12 hours with replacement)
Prevents the re-spread of contaminants, various bacteria, and viruses through the absence of water reuse
Equipped with Smart, Cutting-edge AI
With machine learning capabilities, the robot can autonomously learn all obstacle information and optimize
Real-time processing possible by detecting changes in temperature, humidity, season, environment, and structure
Equipped with technology to detect the movement of people or objects for detours and stop avoidance
The AI is equipped with a cleaning method program for cleaning equipment, enabling it to autonomously detect direction and navigate the path in real time
Features Designed with Stability as the Top Priority
Equipped with a high-performance Lidar sensor and dual 3D cameras, ensuring a wide 360-degree field of view without blind spots
Visual and auditory safety design allows for various notifications of device location
Equipped with various emergency stop sensors, including an E-Stop button for emergency situations
Equipped with a self-diagnostic function, the AI independently detects and diagnoses errors
A System for Systematically Managing Robots
Continuous upgrade support through custom manufacturing rather than modification of existing equipment
Analyzes numerical indicators and provides reports by cleaning task
Anyone can easily manage it in real-time on mobile and PC
Equipped with event notification features via SMS and email
A remote support team is available 24/7 to respond quickly in case of robot malfunctions
1-year warranty period
Results
| Key Benefits | Capable of performing continuous cleaning operations day and night |
|---|---|
| Client Feedback | Cleaning efficiency has increased significantly as large spaces can be cleaned quickly without the help of a manager. |
