Process layout

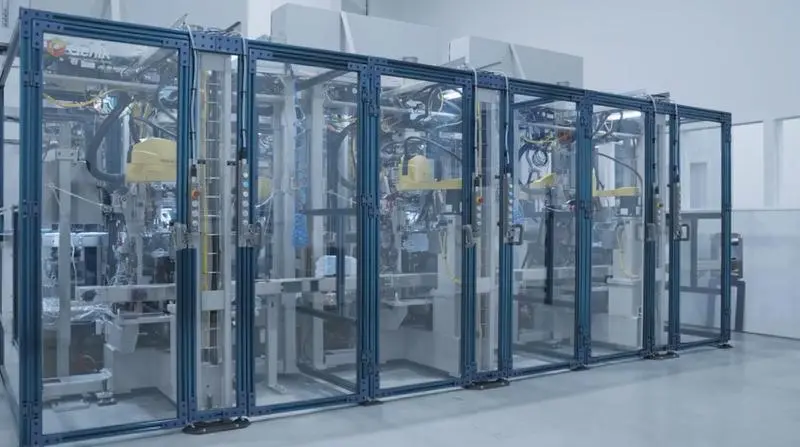

This solution features the implementation of safety fencing within a robot cell to meet the surging demand for surgical masks while establishing a secure working environment that complies with international safety standards. To fulfill high-volume production contracts under tight deadlines, the safety enclosure was designed for rapid installation. Its user-friendly layout ensures that the entire robotic cell can be efficiently managed by a single operator.
Components
| Robot |
|
|---|
Workflow
| STEP 1. | Infeed: Raw mask fabric is fed into the system. |
|---|---|
| STEP 2. | Cutting: The fabric is precisely cut to the required mask dimensions. |
| STEP 3. | Transfer: Cut pieces are moved to the next stage via a conveyor belt. |
| STEP 4. | Sewing: The FANUC SCARA robot performs high-speed sewing/assembly. |
| STEP 5. | Outfeed: Finished masks are discharged onto the exit conveyor. |
Features
Rapid Design and Installation
Unmatched Speed: The entire process—from designing the safety enclosure to final installation—was completed in just 5 days (1 day for design, 4 days for installation).
Agile Response: Optimized for high-priority production contracts that require immediate infrastructure scaling.
User-Friendly Design
Single-Operator Management: The robotic cell is engineered so that one worker can easily oversee both production and system management.
Easy Maintenance Access: Equipped with Safety Interlock Switches, allowing quick and secure access to the machine whenever maintenance or adjustments are needed.
Enhanced Workplace Safety and Hygiene
High-Speed Protection: Completely isolates workers from the high-speed movements of the FANUC SCARA robot, preventing accidents.
Cleanroom Compatibility: Constructed with materials and layouts that meet strict hygiene standards required for medical-grade mask production.
Results
| Key Benefits | Successfully fulfilled large-scale surgical mask contracts by meeting increased production volume and safety compliance.
Achieved a high-standard safety environment within a very short timeframe.
|
|---|---|
| Client Feedback | Vention completed the custom design and installation of the safety fencing for our production line in just 5 days. Their collaborative approach perfectly aligned with Genik’s philosophy, making the entire integration process incredibly efficient. |
