Process layout

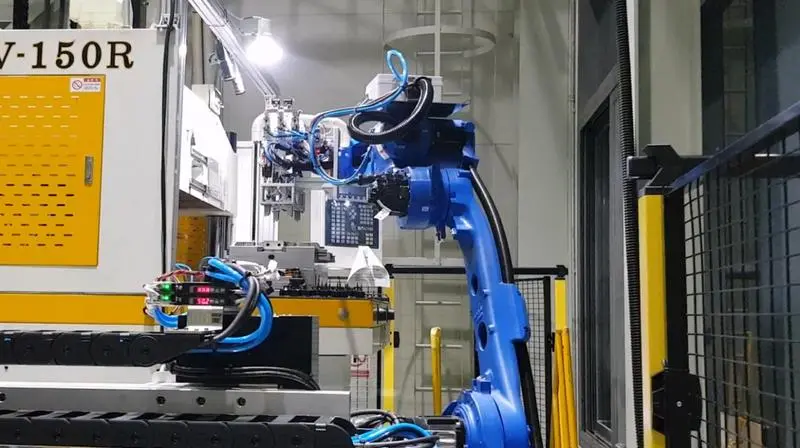

This machine tending automation solution utilizes the YASKAWA Motoman-GP25 to support and automate the insert molding process. By employing two pairs of double grippers, the robot simultaneously loads two insert parts into the mold and extracts two finished products once the molding cycle is complete, transferring them to the next stage.
The integration of this high-precision, high-speed industrial robot with a linear (Cartesian) robot system ensures continuous, idle-free production, leading to a significant boost in overall productivity.
Components
| Robot |
|
|---|
Workflow
| STEP 1. | Picking: The robot picks up the raw insert parts. |
|---|---|
| STEP 2. | Loading: Inserts the parts precisely into the injection molding machine. |
| STEP 3. | Extraction: Picks up the finished molded products from the mold. |
| STEP 4. | Unloading: Transfers and unloads the finished parts onto the linear robot for further transport. |
Features
Improved Production Efficiency & Quality Control
Minimized Idle Time: Achieves high production efficiency through continuous, seamless operation with minimal downtime.
Rapid Cycle Times: Utilizes a high-speed industrial robot to significantly reduce the time required for each production cycle.
Reduced Labor Requirements: Minimizes management checkpoints, allowing for a reduction in the number of operators required per line.
Superior Quality: Prevents defects and improves overall product quality by eliminating the risk of missing inserts during the molding process.
Results
| Key Benefits | Significant productivity boost through continuous, idle-free manufacturing.
Reduced labor costs by streamlining management and operation points.
|
|---|---|
| Client Feedback | By minimizing idle and standby times and implementing a high-speed industrial robot, we were able to drastically improve our overall productivity. |
