Process layout

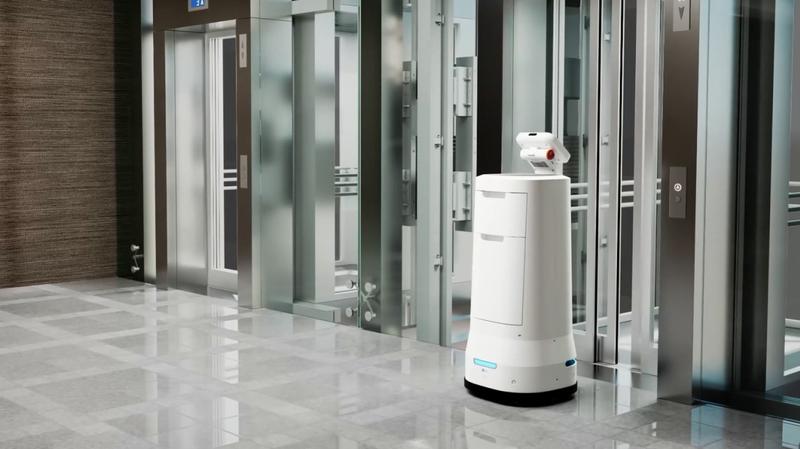

This solution is a simulated food-delivery case utilizing the LG CLOi ServeBot (Drawer Type) developed by LG Electronics.
The LG CLOi ServeBot (Drawer Type) is a robot designed for the secure delivery of items. It can transport goods in three drawers (two for the large-capacity model), with each drawer featuring a password lock to ensure security during transit. Through a mobile app, users can summon the robot, schedule tasks, and monitor its status in real-time from anywhere. To ensure an optimized solution, you can choose the model best suited for your environment: either the standard 3-tier storage model or the large-capacity 2-tier storage model.
Components
| Robot | LG CLOi ServeBot (Drawer type); - Dimensions (W x D x H): 510 mm * 510 mm * 1300 mm; - Basic Drawer Size (W x D x H): 330 mm * 260 mm * 150 mm; - Big Drawer Size (W x D x H): 330 mm * 260 mm * 350 mm; - Basic Drawer Payload: 15 kg (5 kg * 3); - Big Drawer Payload: 17 kg (5 kg + 12 kg); - Weight: 68 kg; - Charging Time: 2.5 hours (Automatic charging); - Operating Time: 5 hours; - Driving Speed: 0.1 m/s ~ 1 m/s; - Network: LTE/BT |
|---|---|
| Peripherals | Home Base |
Workflow
| STEP 1. | Load the items ordered by the customer into the robot's drawer |
|---|---|
| STEP 2. | Move to the destination by passing through the elevator/automatic doors |
| STEP 3. | Arrival notification and password transmission via mobile phone application |
| STEP 4. | Move to the next destination after delivery is completed |
Features
Driving function optimized for large areas
Elevator Interlocking and Boarding (Certified by the Korea Elevator Safety Management Corporation)
Pass through the automatic door inside the building
Responding to various driving situations
Real-time secure Delivery service integrated with control systems
Provides control system capable of monitoring safe robot driving (Web/App.)
Check real-time Delivery status through monitoring
Locking mechanism applied to each robot drawer
Suitable for use in various environments
Safe delivery of inspection without damage during transport from the hospital
Provision of contactless services and improvement of service quality at hotels
Delivery is possible in office buildings without external delivery companies entering the building
Results
| Key Benefits | Autonomous driving optimized for space
Secure security settings and multi-destination delivery service
Real-time monitoring management through control system integration |
|---|---|
| Client Feedback | It is a safer and more convenient robot that can deliver items in drawers rather than shelves, protecting against theft and misdelivery accidents. |
