Process layout

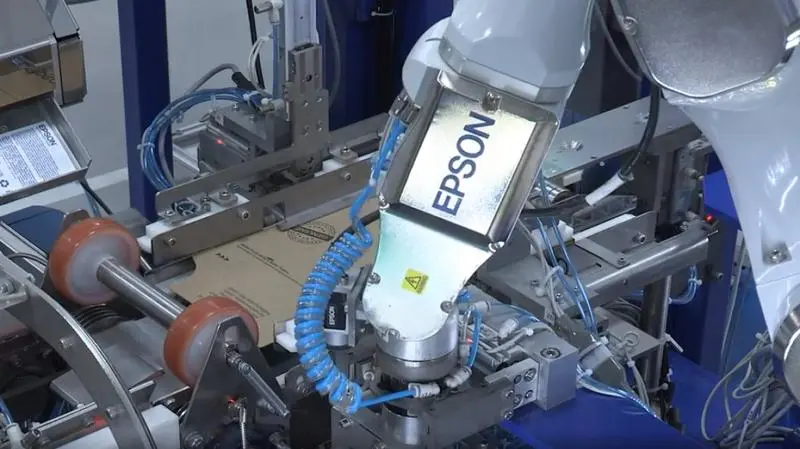

This application case features an automated ink cartridge packaging solution utilizing the Epson C4 6-axis robot. By integrating a tool changer, the system performs multiple tasks—box handling, cartridge insertion, and QR code inspection—within a single compact cell.
The seamless transition between tasks minimizes idle time, maximizes productivity, and simplifies process management through a unified automation flow.
Components
| Robot |
|
|---|
Workflow
| STEP 1. | Box Picking & Loading: Picking the empty paper packaging boxes and loading them into the cell. |
|---|---|
| STEP 2. | Manual Insertion: Placing the product manual inside the box. |
| STEP 3. | Cartridge Alignment: Aligning the ink cartridges for precise insertion. |
| STEP 4. | Tool Change: Switching the end-effector to the inspection/handling tool. |
| STEP 5. | QR Code Recognition: Scanning the product's QR code for tracking and inspection. |
| STEP 6. | Box Forming & Taping: Folding the box into shape and applying sealing tape. |
| STEP 7. | Tool Change: Switching back to the final handling gripper. |
| STEP 8. | Picking & Pressing: Picking the finished product and ensuring the tape is firmly adhered. |
| STEP 9. | Discharge: Exporting the fully packaged product to the output line. |
Features
Improved Production Efficiency & Exceptional Space Utilization
Minimized Downtime: Continuous operation with zero idle time significantly boosts overall production efficiency.
Optimized Cycle Times: The application of high-speed industrial robots minimizes the time required for each packaging cycle.
Maximized Space Utilization: The compact design of the Epson C4 allows for high-performance automation within a very small footprint.
Versatile Multi-Tasking: The integration of an automatic tool changer enables the robot to perform a wide variety of tasks—from picking to inspection—sequentially.
Labor Reduction: By consolidating multiple manual steps into a single automated cell, management points and required manpower are minimized.
Results
| Key Benefits | Significant increase in productivity through continuous, non-stop production cycles.
|
|---|---|
| Client Feedback | By minimizing idle time and waiting periods through the use of high-speed industrial robots, we were able to drastically improve our total production output. |
