Process layout

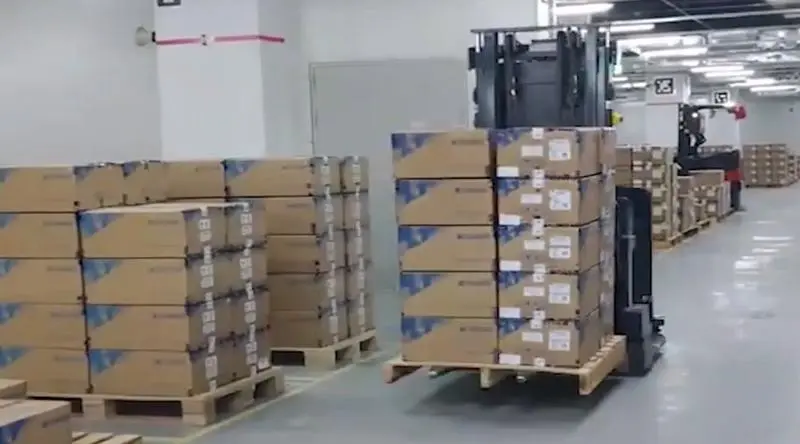

Indoor Logistics Transport using VisionNav VNP15
This application case is an automated loading and unloading solution that utilizes VisionNav’s VNP15 to automate the process of transporting and stacking packed products. Based on strict safety features, it minimizes changes to existing processes, enables unmanned loading/unloading tasks, and allows for effective monitoring and control of the work status.
Components
| Robot |
|
|---|
Workflow
| STEP 1. | Instruction: Receive the loading/unloading task command. |
|---|---|
| STEP 2. | Positioning: Move to the designated picking location. |
| STEP 3. | Handling: Pick up the pallet and initiate transport. |
| STEP 4. | Stacking: Load/stack the pallet at the discharge location. |
Features
Superior Operational Performance and Safety
High Precision: Utilizes Visual-SLAM technology to achieve positioning accuracy of ±5mm and navigation precision of ±10mm.
High Efficiency: Ensures high productivity with a maximum operation speed of 2m/s and rapid movement execution.
Human-Like Agility: Capable of navigating complex paths and avoiding obstacles at speeds comparable to human operators.
Advanced Protection: Ensures maximum safety through a 5-stage safety protection system and redundant control architectures.
24/7 Productivity: Enables continuous, round-the-clock operations to maximize output.
Smart Management: Performs automatic charging based on battery levels and enables efficient task planning.
Minimized Deployment Time and Costs
Rapid Setup: Self-localization and autonomous path-finding capabilities significantly reduce installation time and infrastructure costs.
Flexible Adaptability: Easily responds to changes in factory layouts or new task locations.
Scalable Fleet Management: Capable of optimizing and managing a large-scale fleet of over 100 units simultaneously.
Retrofitting Capability: Possible to apply and optimize the system by retrofitting existing manual forklifts.
Results
| Key Benefits | Reduction in manual labor required for loading/unloading tasks.
Achieved a throughput of 230 Pallets per hour with 24-hour operation.
|
|---|---|
| Client Feedback | Through the VisionNav solution, we were able to stably perform double-stacking and transport tasks. Continuous 24-hour operation has significantly improved our overall operational efficiency. |
