Process layout

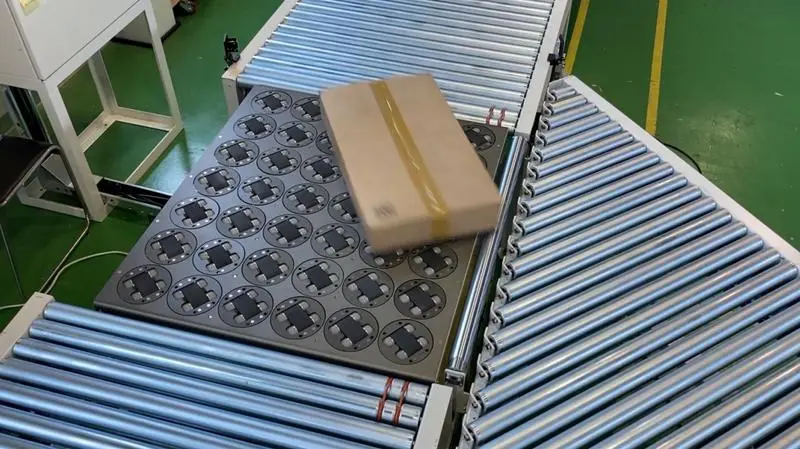

This application case features the LG CNS Hybrid Wheel Sorter, a smart logistics solution that enhances sorting accuracy and stability by improving the structural drawbacks of conventional circular roller wheel sorters through a belt-type application. It is an ideal solution for scenarios requiring the stable sorting of long items, sacks, and irregular-shaped cargo.
The Belt-Type Wheel Sorter is a next-generation wheel sorter developed to overcome sorting errors caused by the narrow contact surfaces of traditional circular rollers. By replacing circular rollers with belt-type rollers, the contact area with the cargo is widened, significantly improving both sorting precision and stability. Additionally, its modular configuration ensures easy installation and maintenance.
This system enables the construction of efficient logistics centers capable of handling high throughput by stably transporting and sorting diverse types of goods.
Workflow
| STEP 1. | Goods arriving at the terminal are unloaded and placed onto the conveyor. |
|---|---|
| STEP 2. | Item information is verified by scanning barcodes using the ITS (Intelligent Tracking System). |
| STEP 3. | Automated sorting is performed using the Belt-Type Hybrid Wheel Sorter. |
| STEP 4. | Sorted items are loaded into delivery vehicles according to their destinations. |
| STEP 5. | Final delivery to the customer. |
Features
Flexible Wheel Sorter Control and Noise/Contamination Resistance
Individual control of transport speeds for each cell.
Independent rotation angle settings and control for each line (±90°).
Noise levels maintained below 82dB through sound-absorbing covers and vibration-dampening plates.
Sealed electrical component design to protect against liquid leakage from overhead items.
Modular Structure for Easy Maintenance and High Quality/Productivity
Top transport belts and BLDC motor components can be replaced within 5 minutes.
Modular line design allows for full line replacement in under 30 minutes during downtime.
Proven reliability with over 4 million cumulative divergence tests and 2,000+ hours of harsh-condition testing for transport units.
Completed environmental testing for extreme temperatures (under -15°C ultra-low to over 40°C high-temp/humidity).
Next-Generation Wheel Sorter
Enhanced transport stability through dense wheel spacing and high-grip rubber wheels.
Minimized tracking errors via granular PLC internal buffer memory.
Dual-correction system utilizing both sensors and encoders for precise position tracking.
Position correction system that reduces errors using a Metering Conveyor.
Results
| Key Benefits | Stable and reliable operation.
Higher productivity compared to existing systems.
High cargo sorting accuracy through precision control technology.
Capability to handle a wide variety of product types.
|
|---|---|
| Client Feedback | By introducing the Belt-Type Wheel Sorter, the efficiency of sorting irregular cargo has increased, and the possibility of mis-sorting has decreased. |
