Process layout

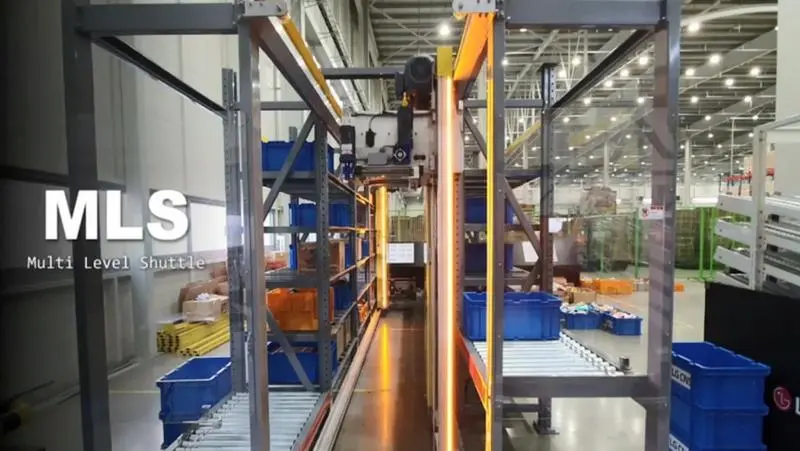

This application case features the implementation of the LG CNS Multi-Level Shuttle (MLS) system.
The Multi-Level Shuttle is a high-efficiency, "Light Version" shuttle AS/RS (Automated Storage and Retrieval System) based on LG CNS's proprietary technology. By employing two shuttles operating in sync within the same aisle, it achieves over 1.6 times higher productivity than traditional single-shuttle systems. Furthermore, its modular design allows for horizontal and vertical expansion, much like LEGO blocks.
Unlike conventional AS/RS systems that require large-scale installation and high investment costs, the MLS minimizes floor space by sharing shuttle travel paths across racks configured in two or more rows. This allows for installation in much tighter spaces. Its simple, module-based design is realized through the use of lightweight forming racks.
As an advanced shuttle system with built-in collision avoidance, it enables real-time storage and high-speed inbound/outbound processing while maximizing space efficiency through shared aisle technology.
Workflow
| STEP 1. | Goods arriving at the logistics center are transported via the inbound conveyor. |
|---|---|
| STEP 2. | The MLS picker automatically loads and stores the products arriving from the conveyor. |
| STEP 3. | The shuttle picker performs real-time picking according to outbound order requests. |
| STEP 4. | Picked items are loaded onto the outbound conveyor. |
| STEP 5. | Products moving along the outbound conveyor are dispatched from the logistics center to their final destinations. |
Features
Versatile loading of diverse items
Rack configurations designed to freely store various types of goods.
Adaptable to diverse layouts, including the ability to operate on inclined racks.
Integrated lifters and conveyors facilitate seamless movement of loads between modules.
High-speed shuttle driving design
High-precision driving with a slip error margin of less than 1 mm, even at high speeds.
Runway design optimized for relative friction during transit.
Rigid structural design enabling high-speed lifting.
Lifting structures and conveyor configurations designed for the rapid transfer of products.
Lightweight modular assembly solution
Simple linear telescope structural configuration.
Aesthetic exterior design utilizing formed aluminum materials.
A "Light Version" structure using lightweight forming racks as the base material.
Results
| Key Benefits | Order processing capacity per shuttle hour.
Simple structural configuration based on lightweight forming racks.
A new, high-performance, and flexible locally-developed (Korean) system.
Automated replenishment/storage and high-speed outbound processing at the box level.
|
|---|---|
| Client Feedback | By introducing the Multi-Level Shuttle and integrating it with inbound/outbound conveyors, we achieved efficient tote-based storage and optimal logistics center automation. |
