Process layout

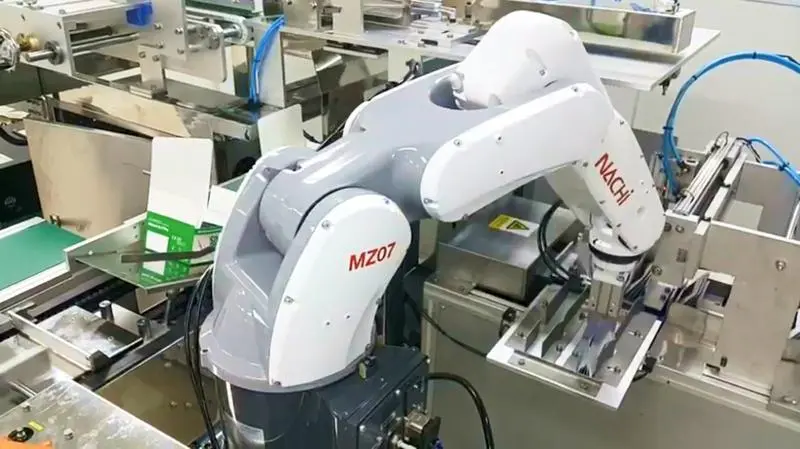

This packaging automation solution utilizes the NACHI MZ07 robot to automate the process of packing pouch-type products into paper boxes. By leveraging this high-precision, high-speed industrial robot, the system can complete the packing of a single box in just 6 seconds, significantly boosting overall productivity.
Components
| Robot |
|
|---|
Workflow
| STEP 1. | Box Infeed: Empty paper boxes are fed into the system and aligned. |
|---|---|
| STEP 2. | Pouch Infeed: Pouch products are fed onto the conveyor and aligned for picking. |
| STEP 3. | Packing: The NACHI MZ07 picks and packs the pouches into the boxes at high speed. |
| STEP 4. | Outfeed: The fully packed paper boxes are discharged for the next process. |
Features
Maximize Space Efficiency with a Compact Robot
Ultra-Compact Design: Utilizes a small-footprint industrial robot that can be installed in tight workspaces similar to those used by human operators.
Reduced Production Time with High-Precision & High-Speed Performance
Industry-Leading Speed: Features a standard work cycle time (reciprocating motion) of just 0.31 seconds, enabling exceptionally fast operation.
Rapid Packing: Completes the entire packing process for a single box in only 6 seconds.
Results
| Key Benefits | Significant productivity boost through reduced cycle times and continuous, idle-free operations.
|
|---|---|
| Client Feedback | By performing rapid and precise tasks, our production time has been drastically shortened, and overall output has increased thanks to continuous manufacturing.
|
