Process layout

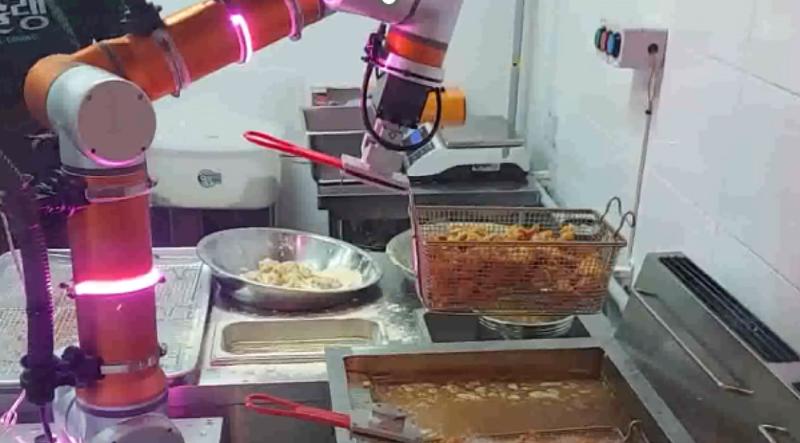

This application is an automated frying solution using the EC66 collaborative robot.
This solution ensures worker safety and convenience by automating frying, and enables cooking food with a consistent taste.
Project Background and Objective
Ensuring convenience and safety
Implementation of consistent cooking recipes
Resolving the labor shortage
Components
| Robot | Yuil Robotics EC66; - 6-axis articulated Collaborative; - Payload 6kg; - Working radius 914mm; - Repeatability ± 0.03mm; - Weight 17.5kg; |
|---|---|
| Peripherals | Controller; Teaching pendant; Mechanisms: Robot mounting base, workbench for dough preparation and basket loading & unloading (standard type); Gripper set: Electric gripper (1 set), fixed bracket for basket handling (basic 5 sets); Command and Guide devices: Touch-type menu command device, voice Guide device, monitoring camera; |
Workflow
| STEP 1. | Waiting for basket loading |
|---|---|
| STEP 2. | Menu command |
| STEP 3. | Perform robot frying task (loading~unloading) |
Features
Provides a standardized layout consisting of a robot, base, and workbench (Select Type 1 or Type 2 depending on the deep fryer installation location)
Minimum installation space: 0.9 pyeong based on using a 2x2 fryer
Dedicated gripping device capable of covering basket position tolerance
Intuitive touch command device and voice Guide device
Real-time monitoring of remaining frying time by menu and cumulative frying time by fryer
Provides basic fried food menus and customized recipe robot teaching programs
Remote A/S System Operation
1-year warranty period
Results
| Key Benefits | Reduced labor costs
Enabling consistent cooking compared to existing staffing
Hygienic and free from infection risks |
|---|---|
| Client Feedback | Freedom from strenuous frying tasks
Elimination of the risk of various diseases
Consistent taste
Resolution of kitchen labor shortages |
