NACHI MZ07L-Based Air-Blowing Automation for Automotive Brake Parts

Process Overview

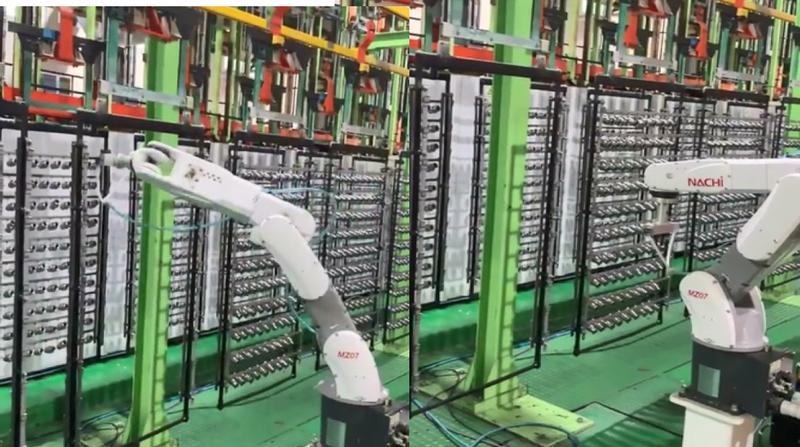

This solution automates the air-blowing process for automotive brake components using a NACHI MZ07L robot, replacing manual operations with a consistent, repeatable robotic process. With conveyor tracking, the robot performs air-blowing during part transfer, reducing cycle time and stabilizing downstream quality.

Components

Robot	Model: NACHI MZ07L Type: 6-axis articulated robot Payload: 7 kg Horizontal Reach: 912 mm Weight: 38 kg Repeatability: ±0.03 mm Protection Rating: IP67
Peripherals	Air-blowing tool (air nozzle / blow-off EOAT) Robot mounting base Conveyor tracking system

Workflow

STEP 1.	Part infeed & transfer (conveyor)
STEP 2.	Conveyor tracking & position synchronization
STEP 3.	Automated air-blow-off execution
STEP 4.	Part outfeed to the next process

※ The content provided by Marosol is protected under U.S. and Canadian copyright and intellectual property laws. Unauthorized reproduction, distribution, or use of this content is strictly prohibited.

Key Features

Maximized space utilization with a compact robot

A compact small-payload robot enables efficient use of limited floor space.
Can be installed in tight areas comparable to a human operator’s working space.

Improved productivity and quality

Performs air-blowing during part transfer using conveyor tracking for continuous operation.
Enables uninterrupted, continuous processing with minimized idle time.
Delivers thorough and consistent air-blowing results for stable quality.

Implementation Results

ROI Period	14 months
Key Metrics	Increased throughput through continuous production Improved overall quality
Client Feedback	By automating a simple but repetitive operation with a robot, we were able to achieve stable and consistent processing, which ultimately improved quality for downstream processes.

※ The content provided by Marosol is protected under U.S. and Canadian copyright and intellectual property laws. Unauthorized reproduction, distribution, or use of this content is strictly prohibited.
