Process layout

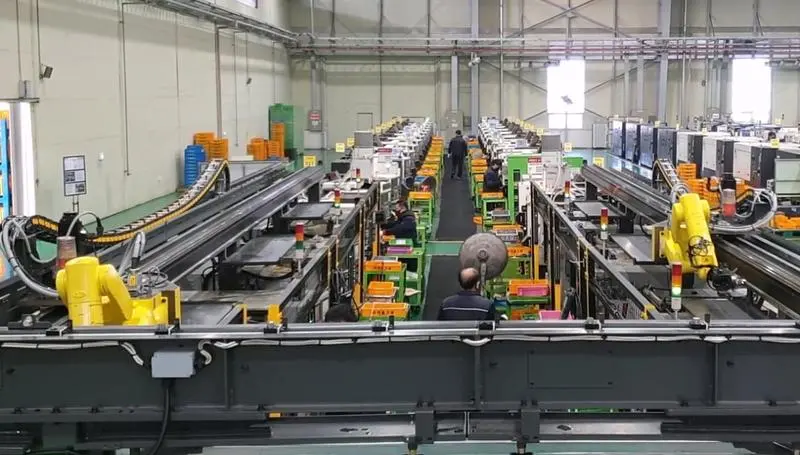

This machine tending automation solution utilizes two Hyundai HH7 robots mounted on an overhead linear track to automate the machining of hydraulic fittings for WIA KIT450 machine tools.
To maximize space efficiency, the robots are installed on a linear track above the machine tools. This overhead configuration allows for a highly efficient, continuous automated process. Because the front of the machine remains unobstructed, operators can easily access the equipment for tool changes and routine maintenance.
Additionally, this solution prevents musculoskeletal disorders in workers by automating the loading and unloading of heavy workpieces.
Components
| Robot |
|
|---|
Workflow
| STEP 1. | (OP10) Pickup: The first robot picks the raw workpiece from the feeder. |
|---|---|
| STEP 2. | Machining: The part is loaded into the turning center for the first stage of machining. |
| STEP 3. | Alignment: The machined part is aligned for the next process. |
| STEP 4. | Unloading: The first-stage completed part is unloaded onto a conveyor. |
| STEP 5. | Transfer: The part is transported to the OP20 (second operation) station via the conveyor. |
| STEP 6. | (OP20) Final Machining: The second robot loads the part into the next turning center for secondary machining. |
| STEP 7. | Palletizing: The final machined hydraulic fitting is unloaded onto a pallet. |
Features
Improved Productivity and Operational Efficiency
Cycle Time Minimization: Utilizes high-speed, high-precision industrial robots to achieve the shortest possible processing cycles.
Multi-Machine Tending: A single robot serves up to three machine tools, perfectly synchronizing with machining times to minimize idle periods.
Optimized Layout: The system configuration can be tailored and expanded based on the specific number of processing machines.
Continuous Production: Minimizes management intervention points, enabling seamless 24/7 automated operation.
Maximum Space Utilization via Optimized Layout
Overhead Installation: By mounting robots on top of the machine tools, the floor space footprint is minimized, maximizing overall facility utility.
Superior Accessibility: Since the front of the machine tools remains unobstructed, operators have easy access for routine maintenance and tool changes.
Smart and Optimized Process Management
Real-time Monitoring: Easily track work status through a smart operation panel.
Production Tracking: Monitor precise production quantities and real-time progress.
Smart Factory Ready: Fully compatible with integrated smart factory systems and data networking.
Results
| Key Benefits | Minimized labor input for workpiece loading/unloading.
Increased productivity by eliminating idle waiting times between cycles.
|
|---|---|
| Client Feedback | We successfully boosted our productivity by minimizing the required labor force and drastically shortening the idle time in our machining process. |
