Process layout
Process Overview

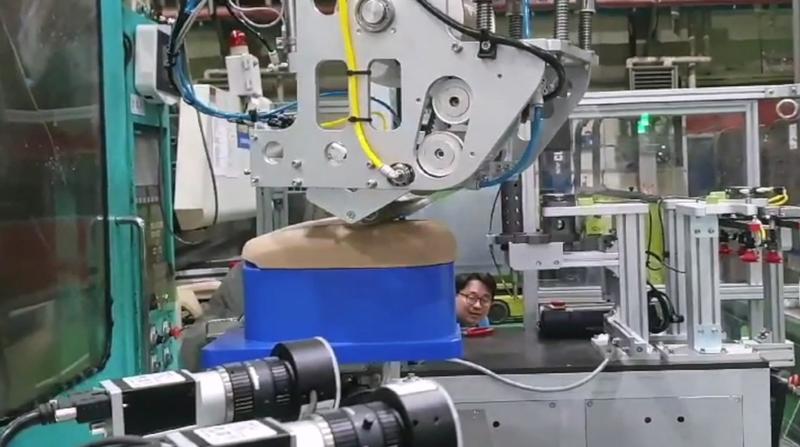

This inspection automation solution uses the DENSO VM60B1 robot to automate quality inspection and protective film application for automotive parts by performing taping and inspection processes through robotic wrapping.
By switching between three tools, the system performs gate cutting, protective film application, and inspection in a single integrated workflow, minimizing management points and improving overall productivity.
Components
| Robot |
|
|---|---|
| Peripherals |
|
Workflow
| STEP 1. | Place plastic parts on the jig |
|---|---|
| STEP 2. | Gate cutting with ultrasonic cutter |
| STEP 3. | Change to wrapping tool and apply protective film |
| STEP 4. | Change to brush and vacuum gripper and apply wrapping tape |
| STEP 5. | Pick the product and perform vision inspection |
| STEP 6. | Load onto weight inspection station and perform weight check |
| STEP 7. | OK/NG judgment via weight conveyor and discharge OK products |
Features
Improved Production Efficiency and Enhanced Quality
Improves production efficiency through continuous operation by minimizing idle time
Minimizes cycle time by applying a high-speed industrial robot
Reduces defect rates by performing 100% inspection (visual and weight inspection)
Minimizes defect rates through weight inspection
Minimizes management points by automating gate cutting, wrapping, and inspection in a single process
Results
| Key Benefits | Improved productivity
Minimization of management points and reduced manpower input
Improved defect rate through product inspection and weight inspection |
|---|---|
| Client Feedback | We initially expected automation to be difficult because multiple tasks had to be performed within a single process. However, by implementing an optimized solution using a tool changer, we improved production speed and achieved 100% inspection, resulting in enhanced product quality. |
