Automotive Parts Grease Dispensing Automation with EPSON C4

Process Overview

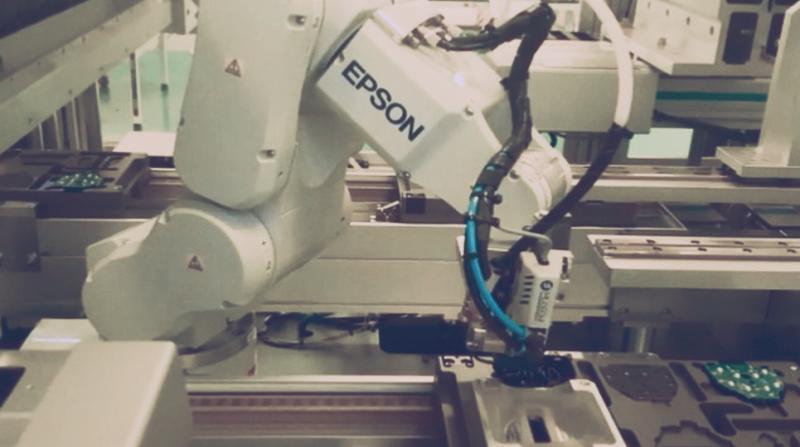

This solution applies grease to automotive switch boxes using an Epson C4 robot.

With a high-precision industrial robot, grease dispensing can be performed according to the product geometry, reducing overall cycle time.

Components

Robot	EPSON C4 6-axis articulated robot Payload: 4 kg Max reach: 600 mm Weight: 27 kg Repeatability: ±0.02 mm
Peripherals	Grease dispensing unit Part transfer jig Part transfer conveyor

Workflow

STEP 1.	Move the part to the grease dispensing position
STEP 2.	Grease dispensing operation
STEP 3.	Transfer to the next process

※ The content provided by Marosol is protected under U.S. and Canadian copyright and intellectual property laws. Unauthorized reproduction, distribution, or use of this content is strictly prohibited.

Key Features

Precise and high-speed operation

Enables precise operations using an industrial robot with high repeatability
Performs fast motion with a maximum joint speed of 720 deg/s, minimizing takt time

Minimized installation and workspace footprint

Minimizes installation and operating space thanks to the robot’s compact form factor

Implementation Results

ROI Period	2.2 years
Key Metrics	Increased productivity through reduced takt time
Client Feedback	Production time was reduced through fast and continuous operation.
