Process layout

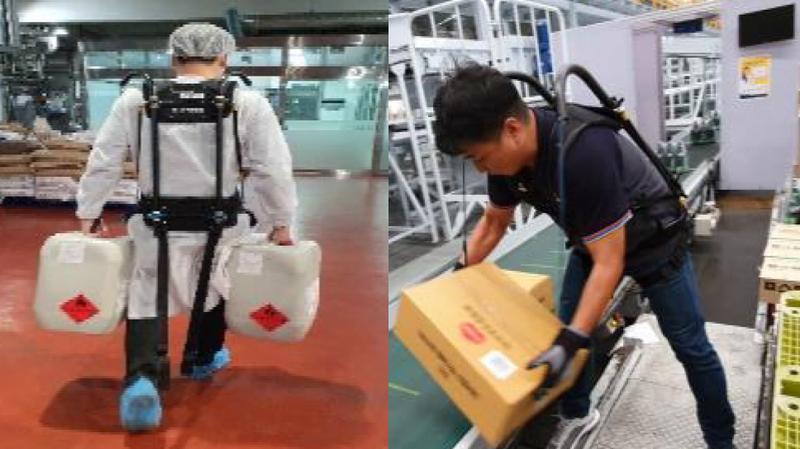

The wearable robot H-FrameS developed by Hyundai Rotem is a solution that utilizes spring-shaped auxiliary force to distribute the workload and minimize worker fatigue during repetitive workpiece transfer tasks.
It distributes the pressure to the shoulder when transporting workpieces, reducing the strain on the wrists and arm muscles.
Shoulder height, waist length, and arm length can be adjusted to fit the user, making it suitable for anyone regardless of age or gender.
👉 Download Catalog
Components
| Robot | H-FrameS (Non-powered spring-assisted type); - Product dimensions (cm): 350L x 260W x 730H; - Product weight: 2.8kg; - Spring assist force: 5~15kgf |
|---|
Features
Excellent workload distribution
Shoulder load distribution structure
Suitable for repetitive transfer of lightweight materials
Load reduction of 5~15kgf is possible by utilizing the restoring force of the spring
70% decrease in arm muscle activity (EMG)
Prevention of musculoskeletal disorders
Excellent wearability
Can be worn/used by anyone, regardless of gender or age, without restrictions on body size
Adjust shoulder height, waist length, arm length, and glove (gripper) shape to suit use
With a lightweight structure weighing 2.8kg, it is easy to wear and can be used according to the worker's skill level/ability
Excellent price competitiveness
As a non-powered model, its compact design ensures high price competitiveness compared to competing models
Investment cost burden can be reduced through rental operation
Results
| Key Benefits | Increased Industry accident safety through reduced worker fatigue
Reducing labor losses by preventing musculoskeletal disorders for workers |
|---|---|
| Client Feedback | Worker fatigue was very high due to repetitive tasks, but by applying Hyundai Rotem's wearable robots, we were able to improve the working environment with minimal investment. |
