Process layout
This solution is a case study of sterilization tests and pilot operations in various vertical environments utilizing the LG CLOi UV-C Bot developed by LG Electronics.

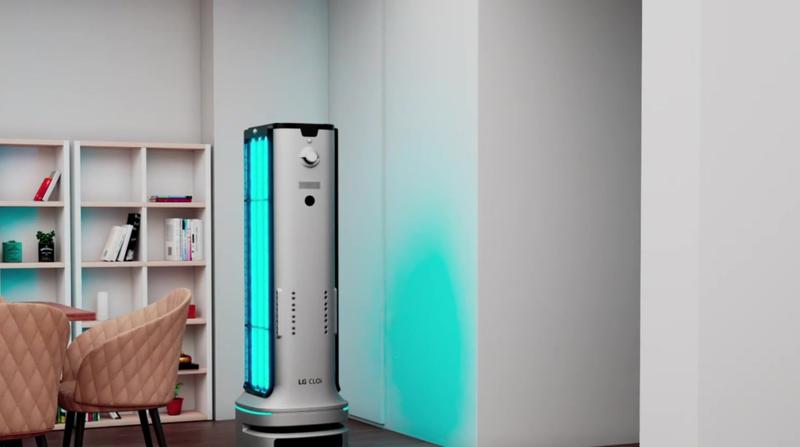

The LG CLOi UV-C Bot is a robot equipped with six UV-C lamps on each side that moves to sterilize spaces within a maximum of 1 meter by up to 99.999%. It can operate in narrow spaces and passageways and can be used continuously for up to 6 hours. With easy operation, users can directly map and specify the robot's path, monitor the sterilization progress remotely via an app, and receive a notification upon completion of operation to inform the user that disinfection is finished.
Components
| Robot | LG CLOi UV-C Bot; - Dimensions (W x D x H): 510 mm * 530 mm * 1610 mm; - Weight: 75 kg; - Lamp: 254 nm 36 W UV-C Lamp * 6; - Sensors: LiDAR, Ultrasonic, Bumper, Motion sensor; - Charging Time: 5.5 hours; - Operating Time: 6 hours; - Driving Speed: 3~5 cm/s; - Network: WI-FI; |
|---|---|
| Peripherals | Home Base |
Workflow
| STEP 1. | Staff or employees complete room cleaning |
|---|---|
| STEP 2. | Move the CLOi UV-C Bot into the designated room |
| STEP 3. | Perform the sterilization process along the walls |
| STEP 4. | Provide a notification via the mobile app upon completion |
| STEP 5. | Move the robot to the next room and repeat the sterilization process. |
Features
Easy purchase, ample demo/experience, and reasonable price
Purchase consultations are available at 78 LG Electronics robot specialty stores nationwide
We provide a free trial service for sufficient demos/experiences before making a purchase decision
The various features are available at a reasonable price through option selection
Fast installation and simple mapping that require no pre-installation
Prompt installation through consultation with a professional service technician after the purchase decision
Immediate sterilization possible without installation via wall-following autonomous driving
The sterilization path can be easily set up, allowing users to map it directly
Providing various solutions focused on user convenience and safety
Operation in tight spaces is possible when securing a minimum driving width of 74cm
Operates continuously for 6 hours on a single charge
Real-time monitoring available via mobile app
Various features applied to ensure user safety
Secured 99.999% powerful sterilization power and verified by accredited institutions
World's first to achieve 99.999% sterilization power in both mobile and stationary states
Sterilization power can also be proven in real-world usage environments using a Dosimeter Card
High Touch Point Sterilization
UV-C lamp reliability
Results
| Key Benefits | High sterilization power using a UV-C lamp
Constant disinfection even after closing time (business hours)
A method with no air residue and no need for post-treatment
Sterilization of walls, lockers, and blinds that are difficult to reach by hand |
|---|---|
| Client Feedback | The robot is easy to operate, and you can receive notifications after sterilization, allowing for more effective disinfection. |
