Process layout
Process Overview

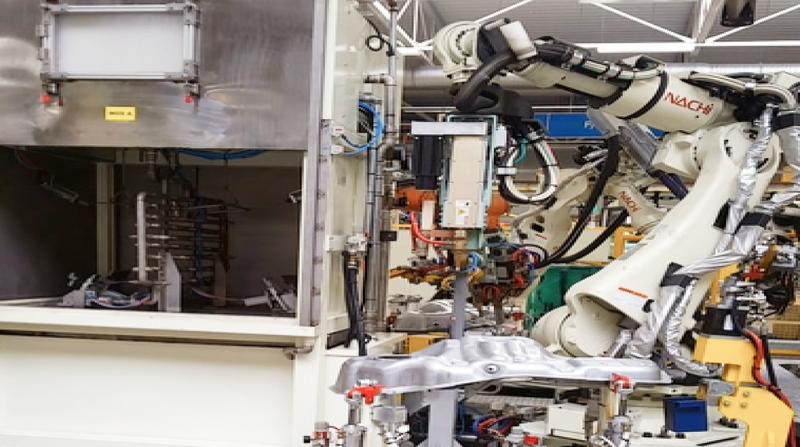

This welding robot solution automates spot welding for aluminum oil pan products using the NACHI SRA210 robot, enabling high-speed welding performance and excellent space utilization.
By applying a dedicated spot-welding robot, the SRA210 supports a compact installation footprint and delivers fast, accurate welding operations.
Components
| Robot |
|
|---|---|
| Peripherals | Robot mounting base; workpiece fixing jig |
Workflow
| STEP 1. | Product loading and fixturing |
|---|---|
| STEP 2. | Spot welding operation |
Features
Improved Production Efficiency and Enhanced Quality
Enables precise, high-speed welding using a high-precision, high-rigidity, low-vibration robot
Boosts productivity through continuous operation with minimal downtime
Executes optimized welding by applying dedicated servo guns matched to welding requirements
Maximized Space Utilization with a Compact Robot Layout
Minimizes the required installation footprint through a compact mounting design
Results
| Key Benefits | Increased productivity through continuous production / Improved welding quality |
|---|---|
| Client Feedback | Installation was possible even in a tighter space than expected, and we were satisfied to achieve the required welding quality within a short timeframe. |
