Process layout

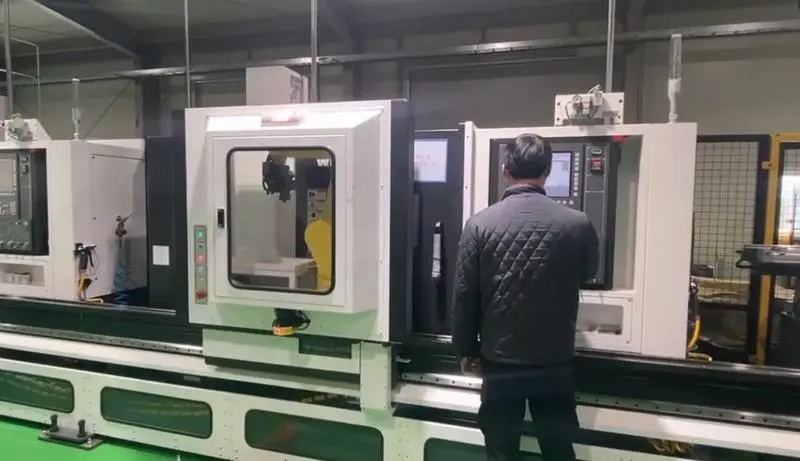

This machine tending solution utilizes a Hyundai HH7 robot mounted on a linear track (7th axis) to assist metal machining across two WIA Turning Centers (HD2200Y).
By leveraging a compact industrial robot and an additional 7th axis, the footprint required for automation is minimized. To ensure operator safety, an integrated robot safety fence was applied, and sensors were installed to decelerate or stop the robot upon detecting human proximity. Furthermore, the automation of both pre- and post-processing via conveyors enables 24-hour unmanned continuous production.
Components
| Robot |
|
|---|
Workflow
| STEP 1. | Feeding & Alignment: A 2-axis Cartesian robot picks the raw workpiece from the input conveyor and moves it to the alignment device. |
|---|---|
| STEP 2. | Picking: The Hyundai HH7 robot picks the aligned workpiece. |
| STEP 3. | Transfer: The robot moves along the linear track to the target Turning Center. |
| STEP 4. | Loading/Unloading: The robot picks the finished part from the CNC and loads the new raw workpiece. |
| STEP 5. | Machining: The Turning Center begins the machining process. |
| STEP 6. | Discharge: The finished part is transferred to the discharge conveyor. |
Features
Improved Productivity and Operational Efficiency
Cycle Time Minimization: Utilizes high-speed, high-precision industrial robots to ensure the fastest possible processing times.
Optimized Utility: A single robot serves two machine tools, matching machining times to minimize idle periods.
Scalable Layout: The system configuration can be expanded or modified based on the number of processing machines.
Continuous Production: Integrated input/output conveyors minimize management intervention and enable seamless 24/7 operation.
Custom Tooling: End-of-arm tooling (grippers) can be custom-designed and manufactured to meet specific workpiece requirements and performance goals.
Simultaneous Safety and High Space Utilization
Space Maximization: Minimizes the occupied area in front of machine tools, allowing for a highly efficient floor plan.
Redundant Safety Systems: Dual-layered operator protection ensures a secure working environment.
Integrated Safety Barrier: Protective walls are installed directly on the robot base to secure the workspace during operation.
Intelligent Motion Control: Worker detection sensors are mounted on the linear rail, automatically decelerating or stopping the robot if a person approaches.
Results
| Key Benefits | Minimized labor input for workpiece loading.
Increased productivity by reducing idle waiting times.
|
|---|---|
| Client Feedback | We were able to significantly increase our overall productivity by minimizing the required labor force and drastically shortening the idle time between machining cycles. |
