Process layout

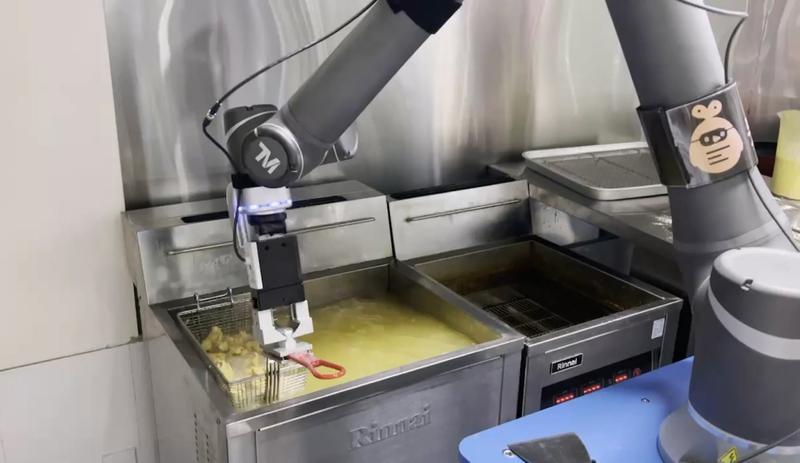

This application is an automated frying solution using the TM12 collaborative robot.
This solution ensures worker safety and convenience by automating frying, and enables food to be cooked with a consistent taste.
Project Background and Objective
Ensuring convenience and safety
Implementation of consistent cooking recipes
Resolving the labor shortage
Components
| Robot | Techman TM12; - 6-axis articulated Collaborative; - Payload 12kg; - Working radius 1,300mm; - Repeatability ± 0.1mm; - Weight 32.8kg; |
|---|---|
| Peripherals | Controller; Teaching pendant; Mechanisms: Robot mounting base, workbench for dough preparation and basket loading & unloading (standard type); Gripper set: Electric gripper (1 set), fixed bracket for basket handling (basic 5 sets); Command and Guide devices: Menu command device, voice Guide device, monitoring camera; |
Workflow
| STEP 1. | Waiting for basket loading |
|---|---|
| STEP 2. | Menu command |
| STEP 3. | Perform robot frying task (loading~unloading) |
Features
Provides a standardized layout consisting of a robot, base, and workbench (Select Type 1 or Type 2 depending on the deep fryer installation location)
Minimum installation space: 0.9 pyeong based on using a 2x2 fryer
Dedicated gripping device capable of covering basket position tolerance
Intuitive ultra-simple menu command device and voice guide device
Provides basic fried food menus and customized recipe robot teaching programs
Remote A/S system operation
1-year warranty period
Results
| Key Benefits | Reduced labor costs
Enabling consistent cooking compared to existing staffing
Hygienic and free from infection risks |
|---|---|
| Client Feedback | Freedom from strenuous frying tasks
Elimination of the risk of various diseases
Consistent taste
Resolution of kitchen labor shortages |
