Process layout

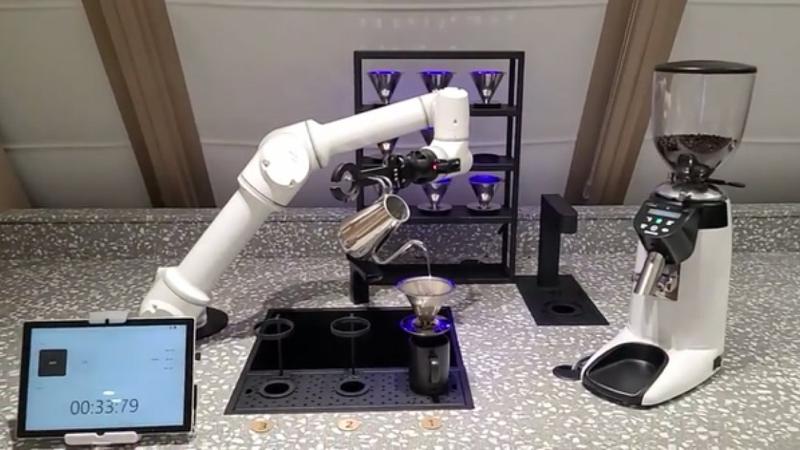

This application is a solution that implements a robot for making drip coffee using the RB5-850.
Unlike the coffee commonly found in vending machines, this solution extracts coffee by precisely controlling the water flow with a robotic hand. It allows for the preparation of drip coffee with a consistent taste, and the flavor profile can be varied depending on the programming (teaching).
Project Background and Objective
An unmanned cafe that replaces human work, rather than a vending machine
Providing contactless services in preparation for the COVID-19 era
Extract coffee with the same taste
Components
| Robot | - RB5-850; - 6-axis articulated Collaborative; - Payload 5kg; - Horizontal working radius 850mm; - Weight 21.5kg; - Repeatability ± 0.1mm; - IP 66 |
|---|---|
| Peripherals | RobotiQ Gripper; Surface Pro Tablet; Grinder; Drip Server; Drip Stand; Dripper; Drip Pot; Wireless Router for Tablet; Cleaning Module; Hot Water Module; Grounds Disposal Module; UV Sterilization Drying Stand; |
Workflow
| STEP 1. | Place an order via tablet |
|---|---|
| STEP 2. | Receive ground beans from the grinder into the dripper |
| STEP 3. | Place the dripper onto the drip stand |
| STEP 4. | Fill the drip pot with hot water |
| STEP 5. | Slowly pour water into the dripper multiple times to extract coffee into the server |
| STEP 6. | Discard any remaining water from the drip pot after brewing |
| STEP 7. | Return the drip pot to the hot water module |
| STEP 8. | Remove and clean the dripper |
| STEP 9. | The customer receives the completed coffee |
Features
Increased coffee extraction efficiency and flavor enhancement
Reduction in manpower required for brewing coffee
Robot-assisted drip coffee brewing
It is possible to implement recipes that drip 8 or more times per cup and to create customer-requested recipes
Differentiated from other cafes
Automation using robots, rather than vending machine-type automation
Clean the dripper after every coffee brewing
Non-face-to-face services tailored to the COVID-19 era
Design and configuration changes are possible depending on the installation environment
Easy robot operation and scalability
Easy system and order management via robot ON/OFF using Windows software
POS and kiosk integration possible
Results
| Key Benefits | Capable of producing drip coffee with various recipes
Brewing coffee with a consistent taste |
|---|---|
| Client Feedback | By using a robot to make drip coffee, we were able to Manufacturing high-quality drip coffee to customers in a contactless manner. |
