Process layout

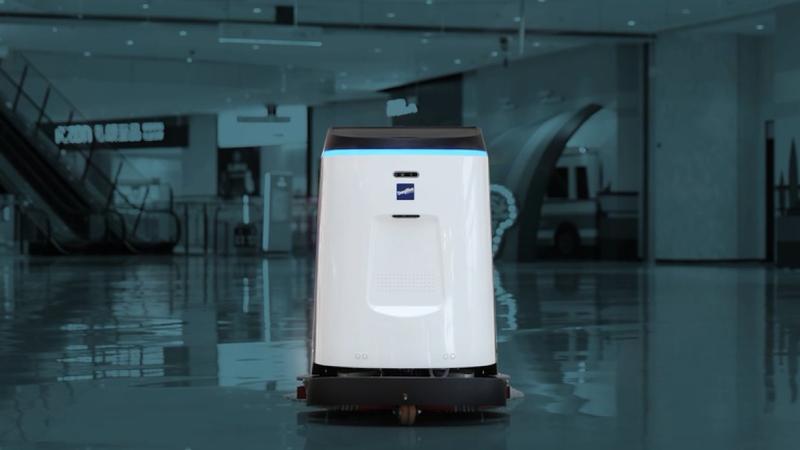

DEEPBLUE’s Baby-Orca cleaning robot is a solution for performing autonomous cleaning tasks in large indoor spaces such as department stores, large shopping malls, and major buildings.
The Baby-Orca cleaning robot is capable of continuous operation for up to 6 hours through autonomous driving, performing effectively both during the day when foot traffic is high and at night when it is low. Equipped with SLAM technology, 3D vision recognition, and fusion sensors, it operates stably even in crowded environments with high foot traffic.
Project Background and Purpose
Automation of day and night cleaning operations in multi-use facilities
Components
| Robot | Deepblue Baby-Orca Cleaning Robot Robot - Dimensions (mm): 880x800x1100 / 1100x800x1100 (including mop handle) - Cleaning Robot Efficiency: 2400㎡/h (approx. 730 pyeong/h) - Suction Squeegee Width: 800mm - Battery: 95Ah - Operating Time: 6h - Charging Method: Plug & Charge, 2 modes for battery replacement - Operating Speed: 0.3~0.5m/s - Water/Wastewater Tank Capacity: 60L/60L - Detergent Tank Capacity: 8L - Noise: Approx. 70dB |
|---|
Workflow
| STEP 1. | Map creation (mapping and key point setting) |
|---|---|
| STEP 2. | Select a cleaning zone |
| STEP 3. | Select a cleaning method (Cleaning/ Water Cleaning) |
| STEP 4. | Cleaning proceeds along the optimal path |
| STEP 5. | Return to the designated point when cleaning is completed |
Features
Best Cleaning quality
Applicable to all hard indoor floors, such as tile, marble, and epoxy.
We provide a total solution that supports cleaning , wet cleaning, and floor care functions.
Autonomous Cleaning Robot
Features simple and intuitive mapping for immediate deployment.
Utilizes proprietary SLAM technology, 3D Vision recognition, and fusion sensors to autonomously navigate and avoid obstacles.
Operation Reporting
Automatically generates a task report upon completion of cleaning.
Reports are stored on the device, allowing for the development of comprehensive operational data and history.
Maximizing Cleaning Efficiency
Equipped with a large 60L purification and wastewater tank for extended operation.
Covers approximately 4,200 pyeong at a rate of 730 pyeong per hour, supporting up to 6 hours of continuous use.
Enables efficient operation tailored to the environment through two charging methods: battery swapping and PNC (Plug and Charge).
1-year warranty period
Results
| Key Benefits | Approximately 720 pyeong per hour, up to 6 hours of continuous use
Can cleaning all hard indoor floors
Providing a total solution supporting cleaning, wet cleaning, and floor care functions |
|---|---|
| Client Feedback | Cleaning efficiency has increased significantly as the robot can autonomously and quickly clean large areas, perform wet cleaning, and provide professional floor care. |
