Process layout

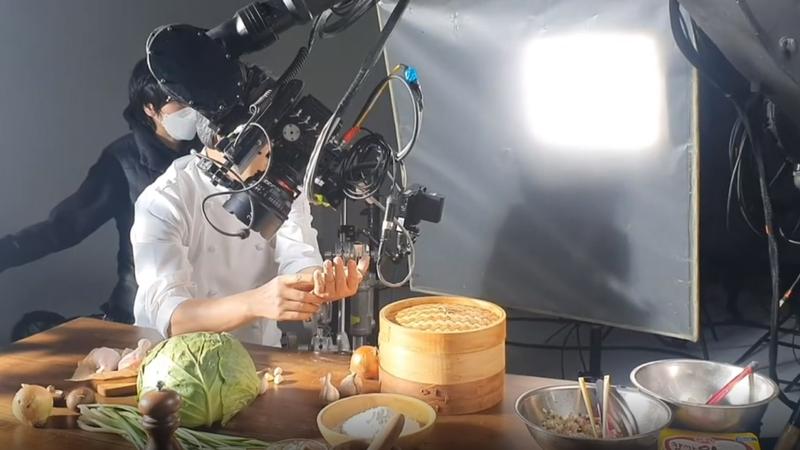

This application example is a shooting solution utilizing the KUKA KR20 R3100.
As is also called MCC (Motion control camera), you can input coordinates and velocity into the robot to perform repeated movements without error.
You can set the movement time to be suitable for high-speed shooting or time-lapses.
Project Background and Objective
Ensuring convenience and safety
Shooting without error
Components
| Robot | KUKA KR 20 R3100; - 6-axis articulated Collaborative; - Payload 20kg; - Horizontal working radius 1200mm; - Weight 549kg; - Repeatability ± 0.05mm; |
|---|---|
| Peripherals | Cameras |
Workflow
| STEP 1. | Error-free repetitive moving shooting |
|---|---|
| STEP 2. | High-speed moving shooting |
| STEP 3. | Simultaneous control of Elevate, Slide, Pan, Tilt, and Roll |
Features
Clean and stable shooting with provided shooting robot software
CG application with error-free repetitive movement, enabling diverse effects
Fast camera movement during High Speed shooting for slow motion
Various motion effects such as linear tracking and arc tracking are possible
1-year warranty period
Results
| Key Benefits | Shooting without error
High-speed moving, time-lapse shooting |
|---|---|
| Client Feedback | Using a robot for filming resulted in more stable shooting and high-quality video compared to humans. |
